Industrial Filtration Media | PTFE/PI NEEDLEFETL
Detailed

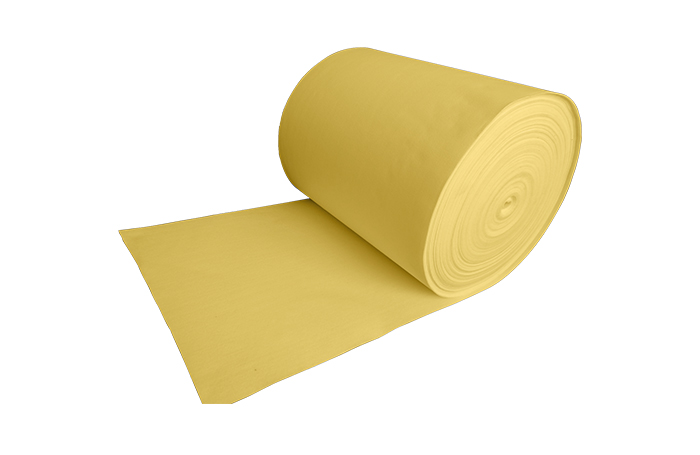

PTFE/PI NEEDLEFETL  630 g/m2 (18.5 oz/yd2)



Description

Blended For Versatility in Aggressive Environments

High Durability Filter Bags blend chemically inert expanded polytetrafluoroethylene (ePTFE) with rugged polyimide fibers.

This hybrid offers significant performance increases over aramid felts both in mechanical endurance and chemical resistance. It provides product recovery and emissions control unequalled by nonmembrane filters.



The polyimide/ePTFE blend provides better humidity and chemical protection compared to aramid and polyphenylensulfide (PPS) felts. Additionally, its temperature range goes all the way to 260 °C

(500 °F). This capability means much better protection against process upsets due to temperature fluctuations. An additional benefit of the blend is its higher resistance to acids compared to aramid fibers. The enhanced performance of the polyimide/PTFEbacker is very effective for applications requiring more chemical and thermal endurance than traditional felts made with aramid or PPS fibers.



Features & Benefits

? Optimized Performance

? Reduced Support Cost

? High Operating Temperature

? Higher Acid Resistance

? Reduced Risks of Downtime



Applications

Working with High-corrosive & temperature gas,

Chemical,

Waster incineration,

Coal-fired boiler,

Non-ferrous metal


PRODUCT DATA SHEET

STYLE PTFE/PI 630



PTFE/PI NEEDLEFETL



AREA WEIGHT

EN12127

630 ±25g/m2

18.5±0.75oz/yd2

DENSITY

0.32 g/cm3

THICKNESS

EN ISO 9073/2

2.5 ±0.5mm

0.098±0.019in



COMPOSITION

FIBER

PTFE + POLYAMIDE (PI)

SCRIM

PTFE

FINISH

HEAT-SET, HYDRO-OIL REPELLENT, SURFACE TREATMENT WITH PTFE BATH







LONGITUDINAL

CROSS

TENSILE STRENGTH (5×20cm)

GB/T 3923.1-2013

900N

1200 N

ELONGATION

GB/T 3923.1-2013

35 %

50 %

THERMAL STABILITY (SHRINKAGE)

at 260 24h

GB/T 6719-2009

1.5%

1  %

AIR PERMEABILITY

at 200Pa

GB/T 5453

120-180 l/dm2 min





FIBER PROPERTIES

POLYAMIDE (PI) / PTFE

OPERATING TEMPERATURE (Dry)

CONTINUOUS

250Max  482 Max

PEAKS

260Max  500 Max



CHEMICAL RESISTANCE

STRONG ACIDS ***

STRONG ALKALIS ***

SOLVENTS   ***

WEAK ACIDS   *****

WEAK ALKALIS   ****

OXIDIZING   ***

HYDROLYSIS ***

LENGEND:   **** EXCELLENT       *** GOOD        ** FAIR       * POOR



* All data expressed as typical values. This technical data is subject to change.








Filter media as roll goods

made of needle felt and glass fibre fabric



Filter media - provide the individual & tailored solution

?   Varieties Material Choose

?   Multi-layer Fiber Construction & Support Scrim

?   Excellent Durability and Longer Life

?   Mechanically High-strength

?   Finished Treatment Performance

?   Higher Efficiency

?   Easy Cleaning

?   Less Dust Emission

?   Better Pressure Performance

?   Resistance to Corrosive Flue Gas & Dust

?   Glass fibre fabric with ePTFE membrane



?   Working width up to 2.60 m

?   Basis weight from 250 to 950 g/m2

?   Innovative performance material can be used in numerous areas and fulfill various requirements

?   Reliable and durable materiel from roll
